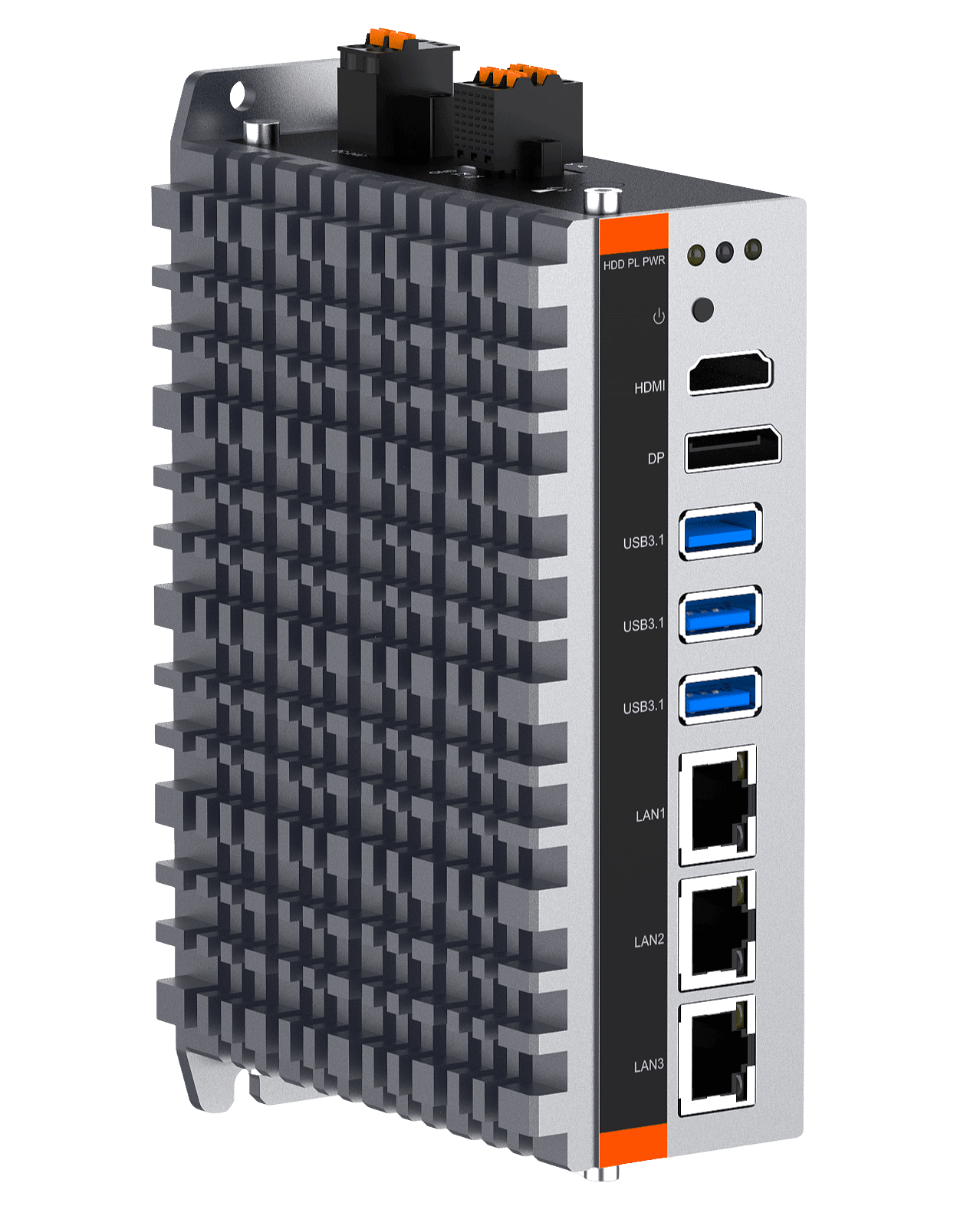

AP Series / AP210
AP210
Compact Fanless Edge Gateway
A palm-sized industrial PC for always-on deployment. Collect data, bridge protocols, drive HMI panels. No fans, no filters, no maintenance schedule. Mount it and forget it.
Edge GW
3x GbE – OT/IT segmentation – dual NIC isolation
HMI
HDMI + DP dual display – up to 4K@60Hz
Protocol
RS232 + RS485 – serial to IP conversion
Remote
WiFi/4G/5G ready – Mini-PCIe + SIM slot
Fanless
10W TDP – zero moving parts, no maintenance
1.06 kg
138 x 102 x 48 mm – DIN rail or panel mount
-20~60°C
20G shock rated – IEC 60068 compliant
Ruggedised
Aluminium chassis – built for harsh environments
Configured and shipped from Norwich, UK · Part of the AP Series
Intel Celeron J6412 · 4C/4T · 2.0–2.6 GHz · Fanless
Fanless
Zero Moving Parts
1.06 kg
138 × 102 × 48 mm
-20 to 60°C
Operating Range
3× GbE RJ45
Intel Gigabit Ethernet
Dual 4K
HDMI + DisplayPort
Overview
Built for the Edge of Your Network
The AP210 is a compact industrial PC built for always-on deployment in control cabinets, equipment enclosures, and field installations. No fans, no dust filters, no scheduled maintenance – mount it, connect power, and it runs.
The Intel Celeron J6412 draws just 10W, keeping the aluminium chassis cool enough for sealed enclosures and outdoor cabinets. A mini-PCIe slot with SIM card holder adds Wi-Fi, 4G, or 5G for remote and unmanned sites.
No Moving Parts
Fanless design. The aluminium chassis dissipates heat passively. No fans to fail, no filters to clean, no maintenance required.
Network Segmentation
Three independent Gigabit Ethernet ports isolate OT, IT, and management traffic without additional infrastructure.
Serial & Legacy Support
RS232 and RS485 connect PLCs, sensors, flow meters, and industrial instruments directly.
Wireless Connectivity
Mini-PCIe expansion for Wi-Fi, 4G, or 5G at sites without wired internet.
10W Power Consumption
Fanless Celeron J6412 runs cool enough for sealed enclosures and outdoor cabinets.
Gallery
Product Gallery
Dimensions
Mechanical Specifications
138 × 102 × 48 mm
Compact enough to fit alongside DIN rail equipment in standard control cabinets. The aluminium-magnesium chassis dissipates heat passively without fans.
Weight
1.06 kg bare · 1.2 kg with DIN rail bracket
Mounting
Standard 35mm DIN rail clip or wall bracket
Passive Cooling
Durable enclosure with no moving parts
Key Features
What Makes the AP210 Different
Industrial-grade hardware in a compact, fanless package.
Triple Gigabit Ethernet
Three independent RJ45 Intel GbE LAN ports. Segment OT, IT, and management networks without an external switch.
Dual 4K Display
HDMI and DisplayPort, both 4K 60Hz. Run an operator panel and monitoring display from one unit.
Serial Port Access
RS232 + RS485 built in. Connect PLCs, barcode scanners, sensors, and legacy industrial devices directly.
Wireless Ready
Mini-PCIe slot with a SIM holder. Add Wi-Fi, 4G LTE, or 5G for remote and unmanned sites.
Wide Voltage Input
DC 12–24V with protection. Runs from standard industrial power, vehicle batteries, or solar installations.
Vibration & Shock Tested
20G shock, IEC60068 vibration rated. CE and FCC Class B certified for deployment alongside sensitive equipment.
Reliability
Built to Run. Built to Last.
No fan failures. No filter changes. No maintenance windows. Just years of uninterrupted operation.
Environmental Testing
IEC60068 certified. Every unit is factory-tested and verified before shipping to your site.
Shock Rated
Survives the bumps, vibrations, and harsh handling of industrial deployment.
Vibration Resistant
Stays stable on shaking machinery and mobile platforms.
Thermal Range
–20 to 60°C operating, –40 to 80°C storage. Works in freezing outdoor cabinets and hot factory floors without derating.

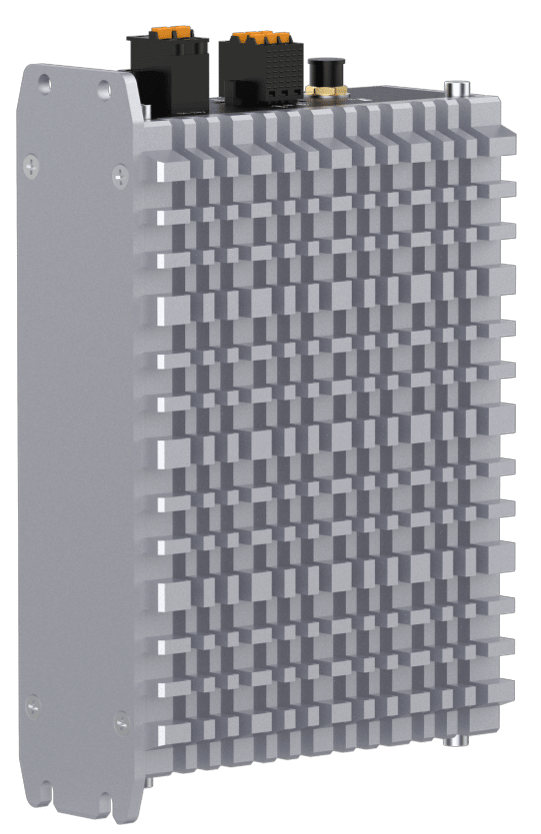

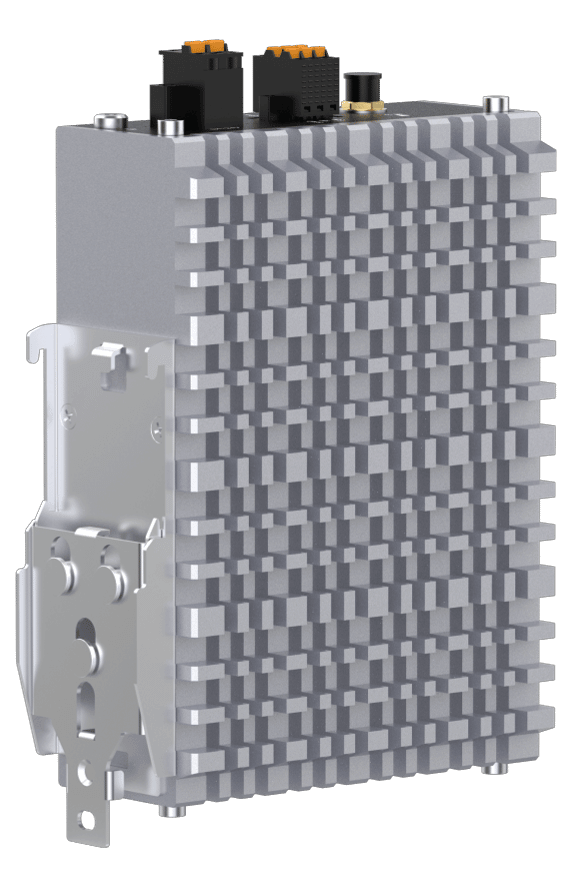

Zero Moving Parts
The chassis itself is the heatsink. Heat dissipates through the aluminium surface. 10W TDP means it runs cool enough to touch.

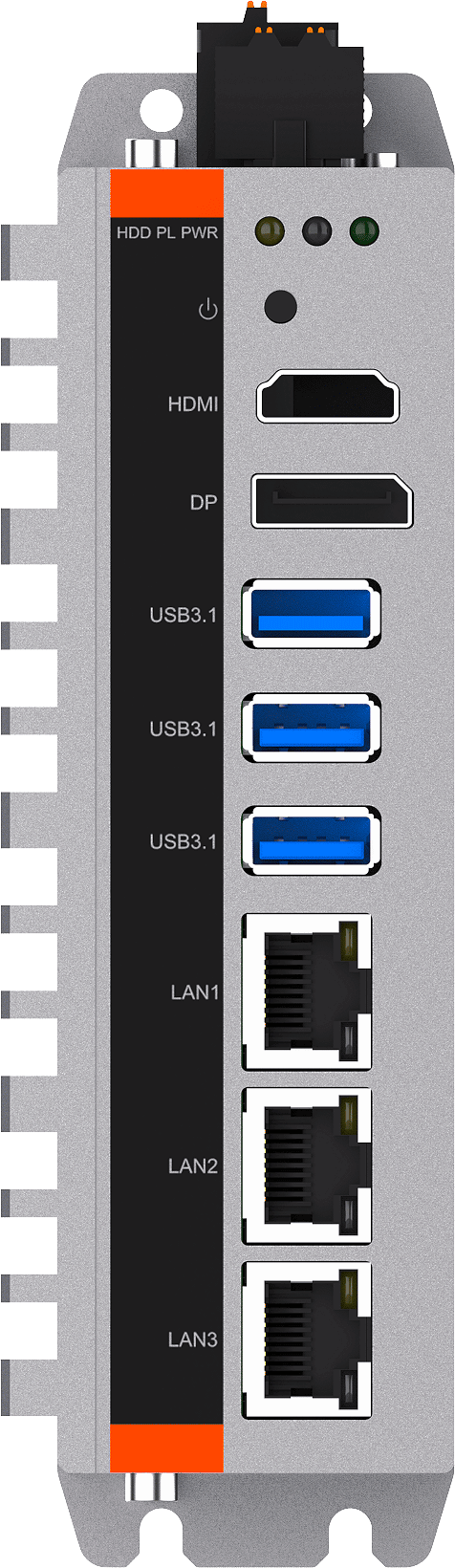

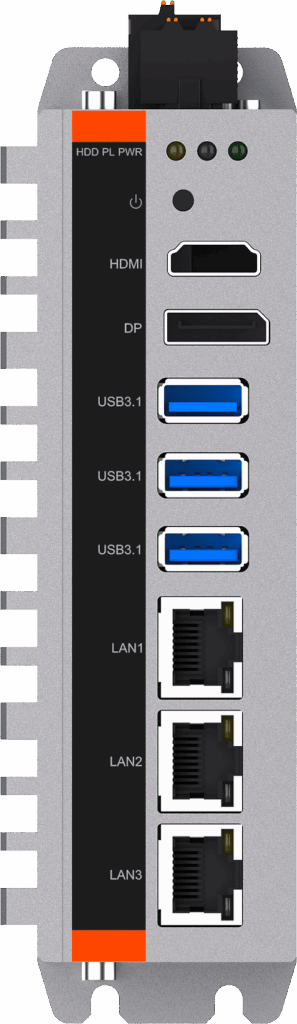

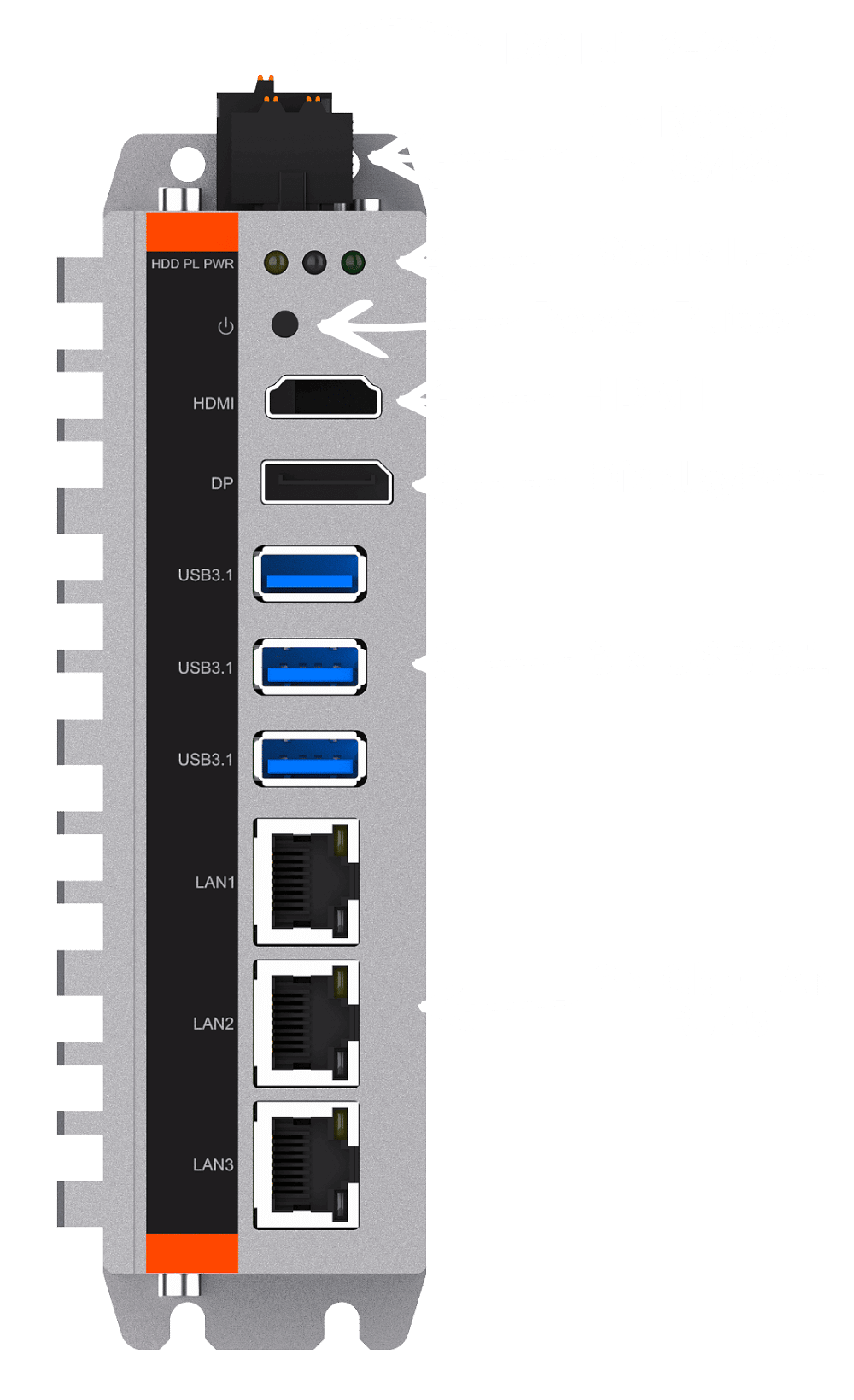

I/O Panel
Every Port You Need
Front and side panels give you access to all connectivity without removing the unit from its mount.
Networking
3× Gigabit Ethernet (RJ45) · 1× Mini-PCIe + SIM slot for Wi-Fi, 4G, 5G

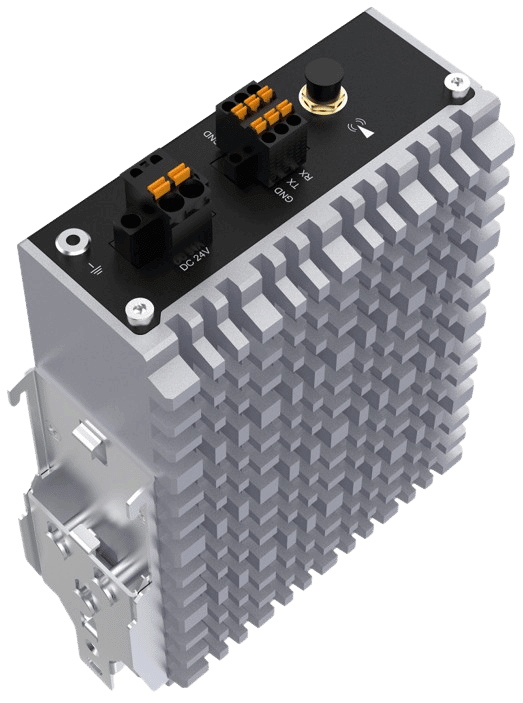

Serial
1× RS232 + 1× RS485 (terminal block) for PLCs, sensors, legacy devices
USB
3× USB 3.1 Gen 1 (Type-A) for peripherals and expansion
Display
1× HDMI + 1× DisplayPort (both 4K @ 60Hz) for dual monitors or touchscreens
Power
DC 12–24V (terminal block) · 45W max with protection
Edge Computing & IoT Gateway
Deploy the AP210 at the edge of your network and let it work. Three independent Gigabit Ethernet ports segment OT, IT, and management traffic without external switches. RS232 and RS485 connect directly to PLCs, sensors, and legacy Modbus devices. Add a 5G module via the mini-PCIe slot for sites without wired internet.
Network Segmentation
Three independent Gigabit Ethernet ports isolate OT, IT, and management traffic. No external switch needed.
Protocol Bridging
RS232 and RS485 connect Modbus RTU/TCP, BACnet, and serial devices to IP networks.
Remote Sites
Mini-PCIe + SIM slot for 4G/5G at locations without wired connectivity.
Typical deployments: MQTT/OPC-UA gateways, SCADA data concentrators, Modbus-to-IP protocol converters, building management system bridges, remote environmental monitoring.

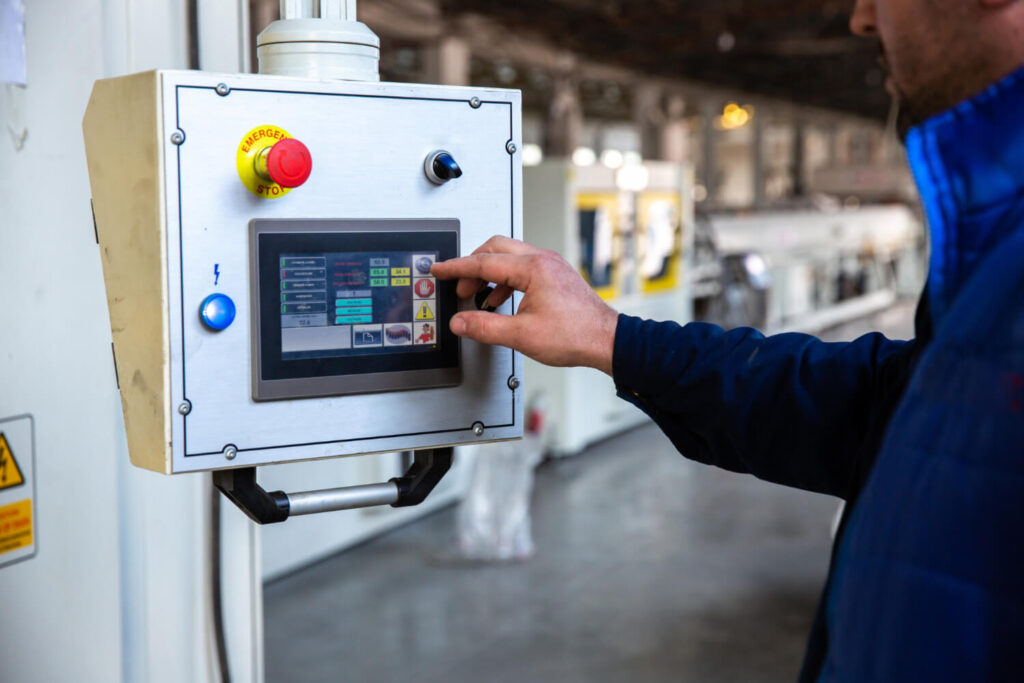

HMI & Operator Panel Stations
Run a touchscreen panel and a monitoring display from one unit. The AP210’s dual 4K outputs (HDMI + DisplayPort) let you drive independent displays side-by-side. USB 3.1 connects industrial touchscreen controllers, barcode scanners, and input devices. The fanless design means it runs silently at the operator’s workstation – no noise, no maintenance.
Dual 4K Displays
HDMI + DisplayPort both at 4K 60Hz. Run operator panel and monitoring display simultaneously from one unit.
Touchscreen Compatible
USB 3.1 for plug-and-play industrial touch controllers and peripherals.
Any HMI Software
Standard x86 runs AVEVA, Ignition, WinCC, or browser-based dashboards. No software lock-in.
Typical deployments: Production line operator terminals, process monitoring dashboards, quality inspection displays, warehouse status boards, reception kiosks.
Remote Monitoring & Unmanned Sites
Deploy the AP210 where you can’t visit regularly. Water treatment plants, cell towers, solar farms, substations. At 1.06 kg fully fanless, it mounts on a DIN rail in sealed cabinets and outdoor enclosures. Connect sensors via RS232/RS485, push data upstream over Ethernet or 4G/5G. No fans means no dust ingestion, no filter changes, no maintenance visits just to keep it running.
Deploy and Forget
Fanless design with no moving parts. Runs unattended in sealed cabinets and outdoor enclosures for years without service.
Cellular Connectivity
4G/5G module in the mini-PCIe slot for remote locations without wired internet.
Direct Sensor Access
RS232 and RS485 read from flow meters, temperature probes, pressure sensors, and industrial instruments.
Typical deployments: Water treatment telemetry, solar farm monitoring, environmental stations, substation data logging, remote agriculture sensors, cell tower infrastructure.
Software Compatibility
Your Software Stack. No Restrictions.
Standard x86 hardware runs Windows, Linux, or your custom image. No vendor lock-in, no licensing fees.
Industrial Protocols
Modbus RTU/TCP, OPC-UA, BACnet, EtherNet/IP, MQTT, AMQP. Connect to any industrial network.
Containers
Docker, Podman, LXC. Run isolated workloads and microservices on a single device.
Edge Platforms
AWS IoT Greengrass, Azure IoT Edge, Google Cloud IoT. Integrate with your cloud infrastructure.
Operating Systems
Windows 10/11 IoT Enterprise
Full Windows with LTSC long-term support. .NET, LabVIEW, AVEVA, Ignition, and standard Windows software.
Ubuntu 24.04 "Noble Numbat" LTS
5 years of updates. Docker, ROS2, Node-RED, Python, MQTT native support.
Debian 13 Trixie
Stable, minimal, predictable. Purpose-built for headless edge deployments.
Custom Images
Send us your image. We pre-load, test, and ship ready to deploy.
Configuration
Configured to Your Requirements
Every AP210 is built to order at our Norwich facility. Choose your RAM, storage, OS, and wireless module. We configure, test, and ship ready to deploy.
RAM Options
8 GB, 16 GB, or 32 GB DDR4-3200. Pick what your application needs.
Storage Options
M.2 2242 SSD from 64 GB to 2 TB. Industrial-grade or standard options.
OS Pre-Install
Windows 10/11 Pro/IoT, Ubuntu 24.04, Debian 13, or ship bare. Your choice.
Wireless Module
Wi-Fi, 4G LTE, or 5G fitted and tested. Or leave empty and add later.
Technical Data
Full Specifications
Complete hardware specifications for the AP210 Compact Edge Gateway.
| Processing | |
| CPU | Intel® Celeron J6412, 2.0~2.6GHz, 4 cores/4 threads, 1.5MB L2 cache |
| TDP | 10W |
| RAM | 1 x SO-DIMM DDR4-3200MHz (Up to 32GB) |
| Storage | 1 x M.2 SSD 2242 · 64 GB – 2 TB |
| GPU | Intel UHD Graphics · 4K @ 60Hz |
| Networking & I/O | |
| Ethernet | 3 x Intel GbE LAN (RJ45) |
| Serial | 1 x RS232, 1 x RS485 (terminal block) |
| USB | 3 x USB3.1 (Type-A) |
| Wireless | 1 x Full-size PCIe Mini slot with SIM card holder · Wi-Fi 7 / 4G LTE / 5G |
| Display & Audio | |
| HDMI | 1× HDMI Support up to 3840 x 2160 @ 60Hz |
| DisplayPort | 1× DP Support up to 4096 x 2160 @ 60Hz |
| Physical | |
| Dimensions | 138 × 102 × 48 mm (W × D × H) |
| Weight | 1.06 kg |
| Chassis | Aluminium-magnesium alloy |
| Mounting | Wall-mounted or DIN-Rail |
| Cooling | Fully Fanless – Passive Heatsink |
| Power & Environment | |
| Power Input | DC 12-24V ±10%, overcurrent, overvoltage and polarity inverse protection |
| Max Power | 45W |
| Operating Temp | -20ºC ~ 60ºC (-4℉~140℉) with air flow (SSD) |
| Storage Temp | -40ºC ~ 80ºC (-40℉ ~ 176℉) with air flow (SSD) |
| Humidity | 5~95% (Non-condensing) |
| Shock / Vibration | 20G peak acceleration(11ms duration) with SSD, Follows IEC60068-2-27 |
| Certifications | CE/FCC Class B |
| Software | |
| OS Support | Windows 10/11 Pro/IoT · Ubuntu 24.04 · Debian 13 |
| BIOS | AMI UEFI · WoL · PXE Boot · Watchdog Timer |
Downloads
Documentation
Technical documentation for the AP210.
Product Datasheet
Complete specifications, I/O details, dimensions, and environmental ratings.
Heritage
Nearly Two Decades Building Rugged Computers
Built by In-CarPC, specialists in rugged computing from the UK since 2006. Part of Bowmonk Ltd, British engineering since 1970. Systems deployed with Jaguar Land Rover, Volvo CE, and the UK Ministry of Defence.
19+
Years in Business
50+
Years Bowmonk
Tested & Shipped
Direct UK Support
Call us and speak to the engineer who configured your unit.
Phone and Email
Direct engineering support from Norwich.
Single Units Available
No minimum order. Buy one or a hundred.
How to Order
From Enquiry to Deployment
Direct from our Norwich, UK facility.
1
Requirements
Tell us your application, CPU, RAM, storage, OS, and wireless needs. We confirm configuration and pricing.
2
Build & Test
Assembled and configured with your chosen OS. Individually tested at our Norwich facility before shipping.
3
Ship
Tracked shipping. UK mainland next-day available. International to most countries.
4
Deploy
Mount it, power it, boot it. Need help? Call the engineer who built your unit.
FAQ
Common Questions
Can it run 24/7?
Yes. The fanless design with 10W TDP stays well within thermal limits. No moving parts means no maintenance windows or downtime.
Expected lifespan?
The Intel Celeron J6412 is expected to be supported by Intel through 2032. Since there are no fans or filters to wear out, most deployments run continuously for 5+ years without issues.
Can I add my own wireless module?
Yes. The mini-PCIe slot accepts standard Full-height cards. We can install Wi-Fi, 4G, or 5G before shipping.
Custom OS images?
Absolutely. Send us your image and we’ll pre-load, test, and ship it configured. For large deployments, we also handle provisioning scripts.
Minimum order quantity?
There’s no minimum. Order one unit or a hundred. Single units are built to order. Volume pricing starts at 10+ units – contact us for project pricing on larger quantities.
Delivery time?
Standard configurations ship within 3-5 days from stock. UK mainland next-day delivery is available once dispatched. We ship internationally as well.
Warranty?
Standard 2-year warranty covers manufacturing defects and component failures under normal operating conditions. Extended warranties are available.
Can I try one first?
Absolutely. Most customers start with a single unit to test in their own environment before committing to larger orders.
