OP Series
Operator Panels
IP65-rated arm-mounted HMI panels for automation workstations. Touch, buttons, and display, sealed and engineered for the factory floor.
Full IP65 · Front and rear sealed enclosure
15" to 21.5" · Four screen sizes, capacitive multi-touch
DC 12–24V · Runs from cabinet power, no mains required
Configured and shipped from the UK
IP65
Full Enclosure Rating
15"–21.5"
Screen Size Range
DC 12–24V
Power Input
50,000 hrs
Panel MTBF (top models)
0°C to 50°C
Operating Range
About the Range
What is the OP Series?
The OP Series are arm-mounted HMI operator panels built to pair with the AP Series automation PCs. HDMI and VGA signal input connects directly to your host PC. A USB cable handles touch communication. DC 12–24V runs from cabinet power.
The enclosure is full IP65, front and rear sealed against dust and water. The swing arm mounts from the top or bottom rail and positions the screen where the operator needs it.
Modular Button Area
Below the screen sits a hard-wired button array. Emergency stop, key switch, selector and push buttons are configured to your specification. The layout can be changed from the front without disassembly.

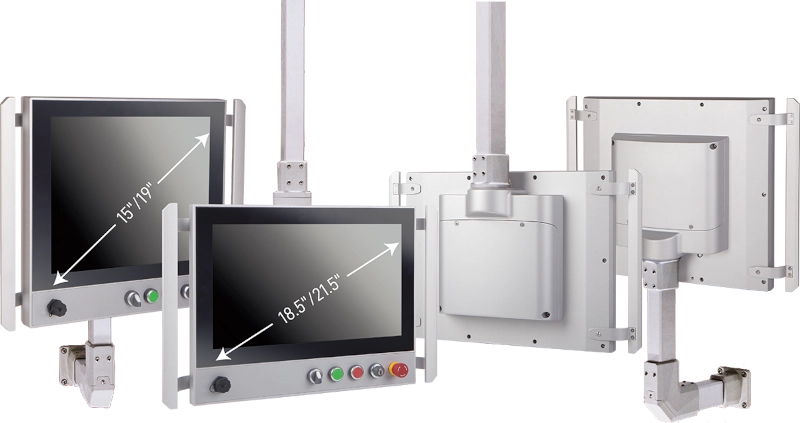

Four Sizes, Two Resolutions
15″, 15.6″, 18.5″ and 21.5″ panels. Two resolution options at 15.6″ and 18.5″ sizes: WXGA (1366×768) or Full HD (1920×1080).
Product Range
Operator Panels for Every Workstation
Four screen sizes. Two resolutions. One arm-mount platform. Pick the panel that fits your workstation.

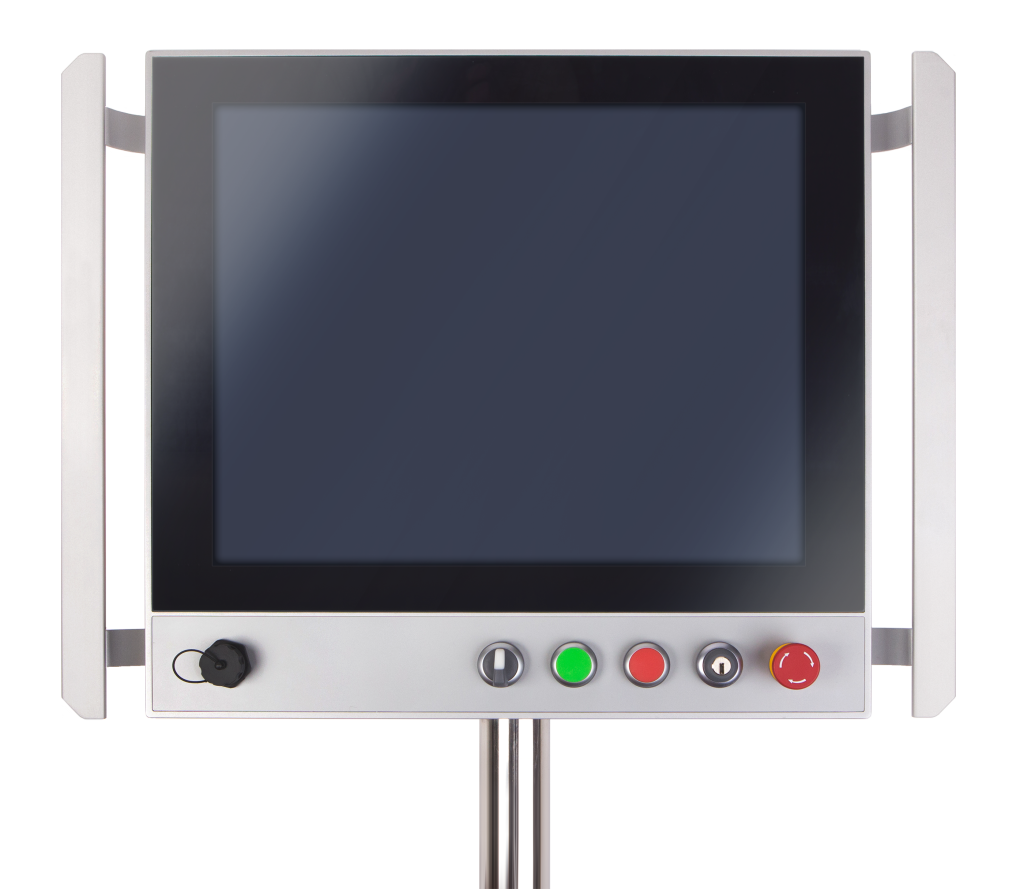

15.0" XGA · 4:3 LEGACY

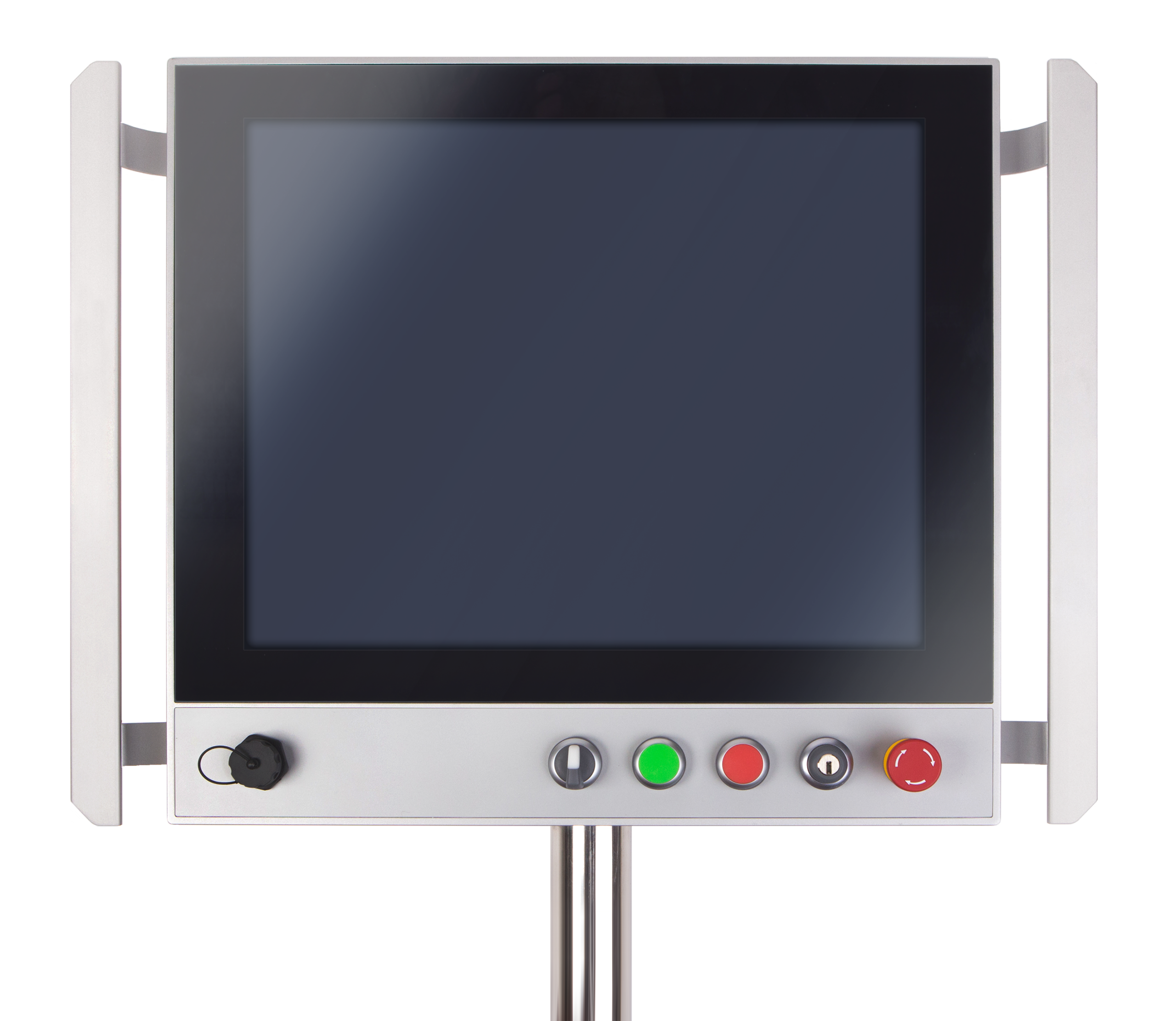

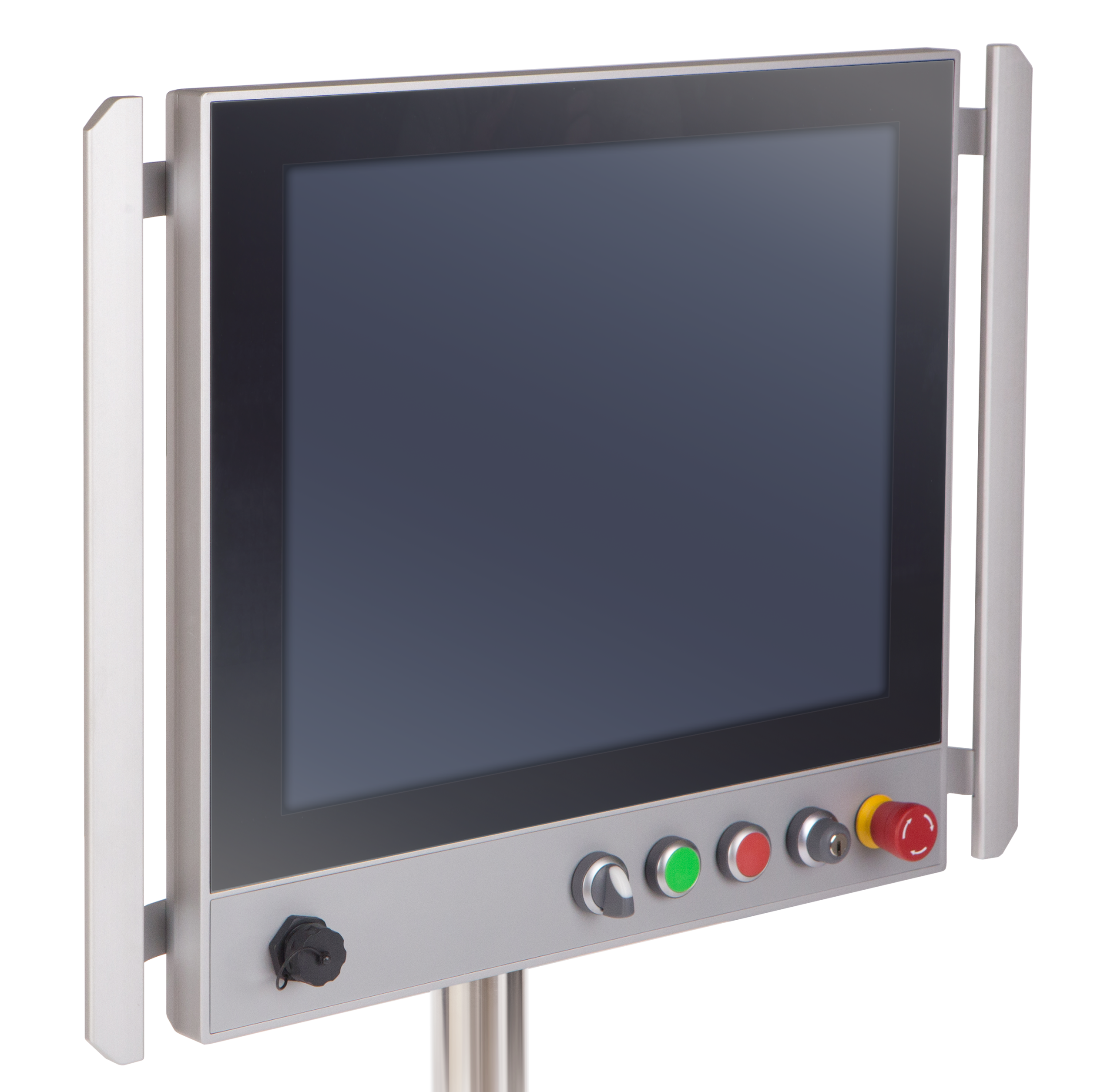

OP115-XG
The compact 4:3 panel for replacing legacy operator stations or fitting into tight cabinet doors. Same IP65 sealing and modular button bank as the rest of the range.
400 cd/m² · 1000:1
≥87% transmittance

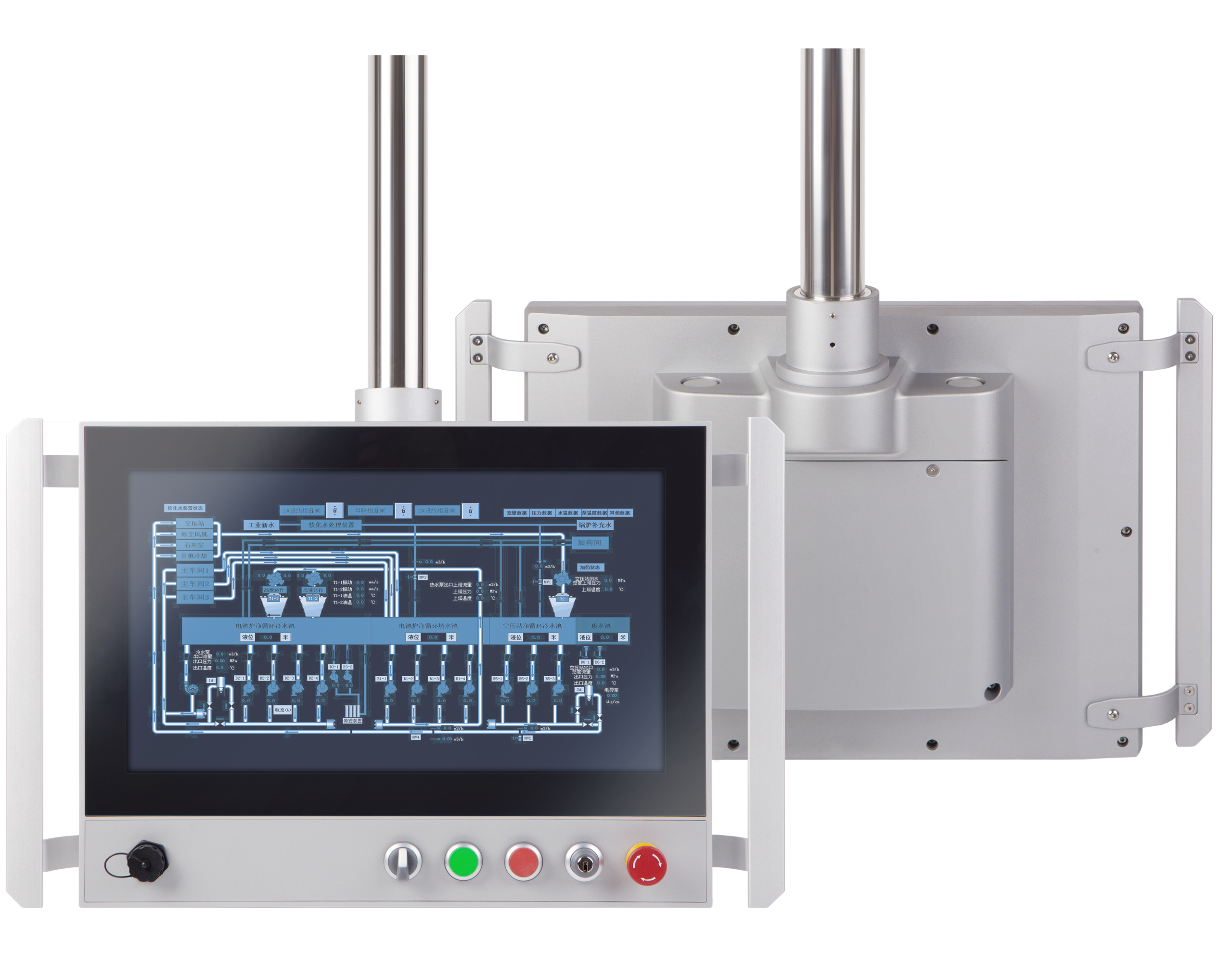

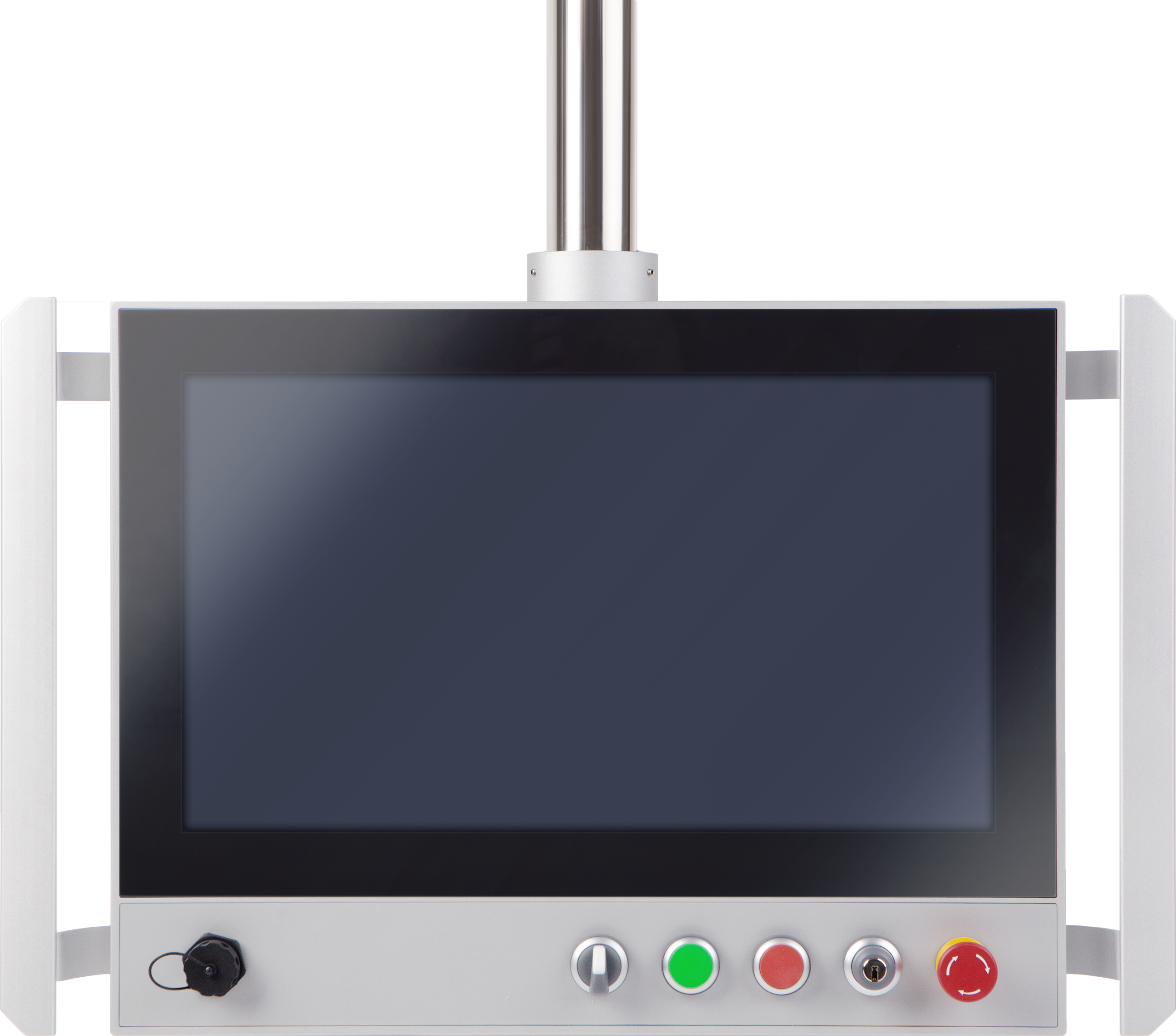

15.6" WXGA OR FULL HD · WIDESCREEN

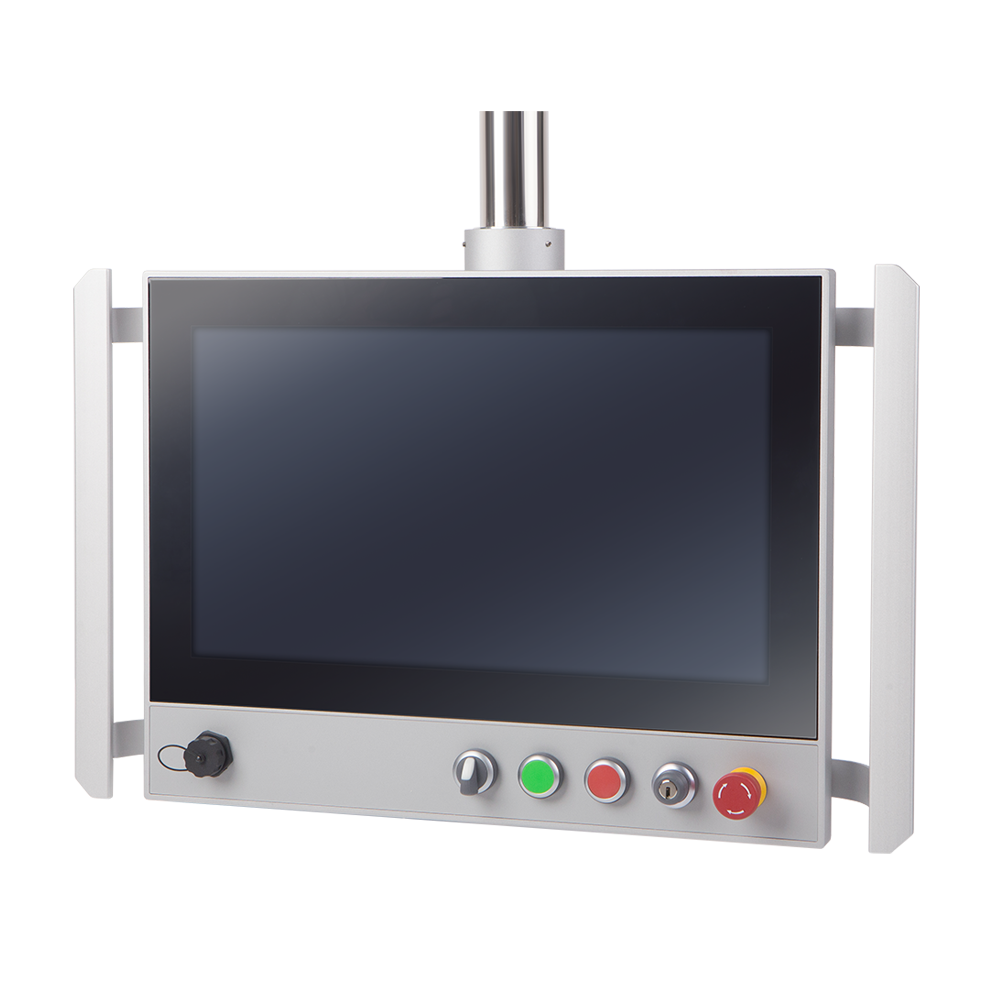

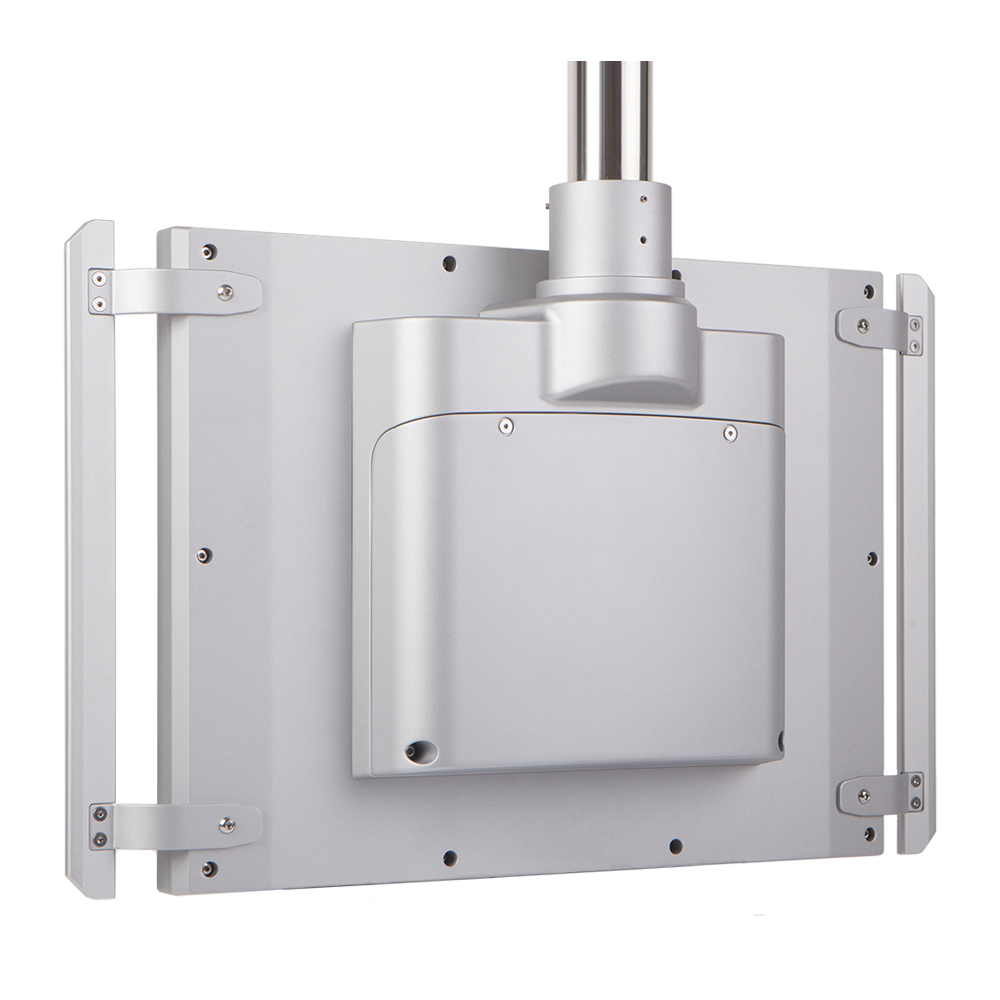

OP116
Standard 16:9 widescreen at 15.6 inches. Available as OP116-WX (WXGA, 1366×768) or OP116-HD (Full HD, 1920×1080) for richer dashboards and dual-pane SCADA layouts.
400 / 350 cd/m²
≥87% transmittance
18.5" WXGA OR FULL HD · WIDESCREEN

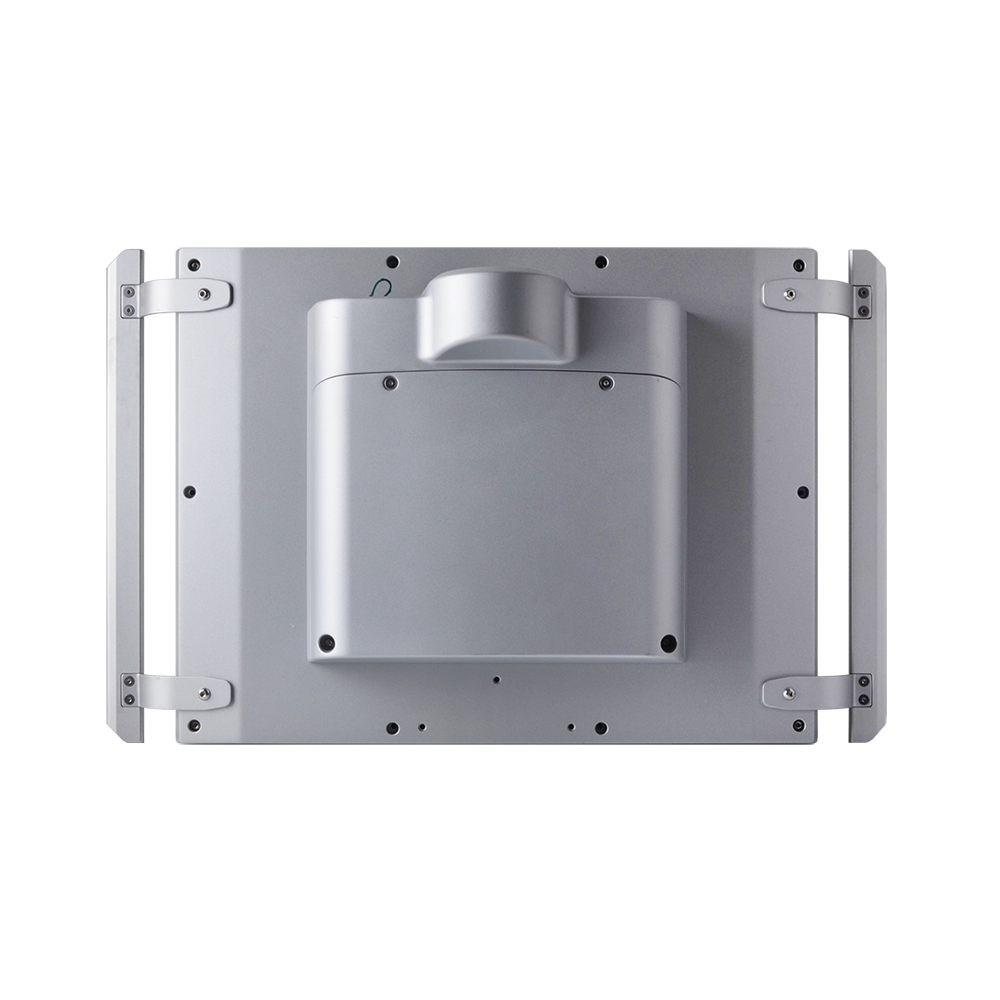

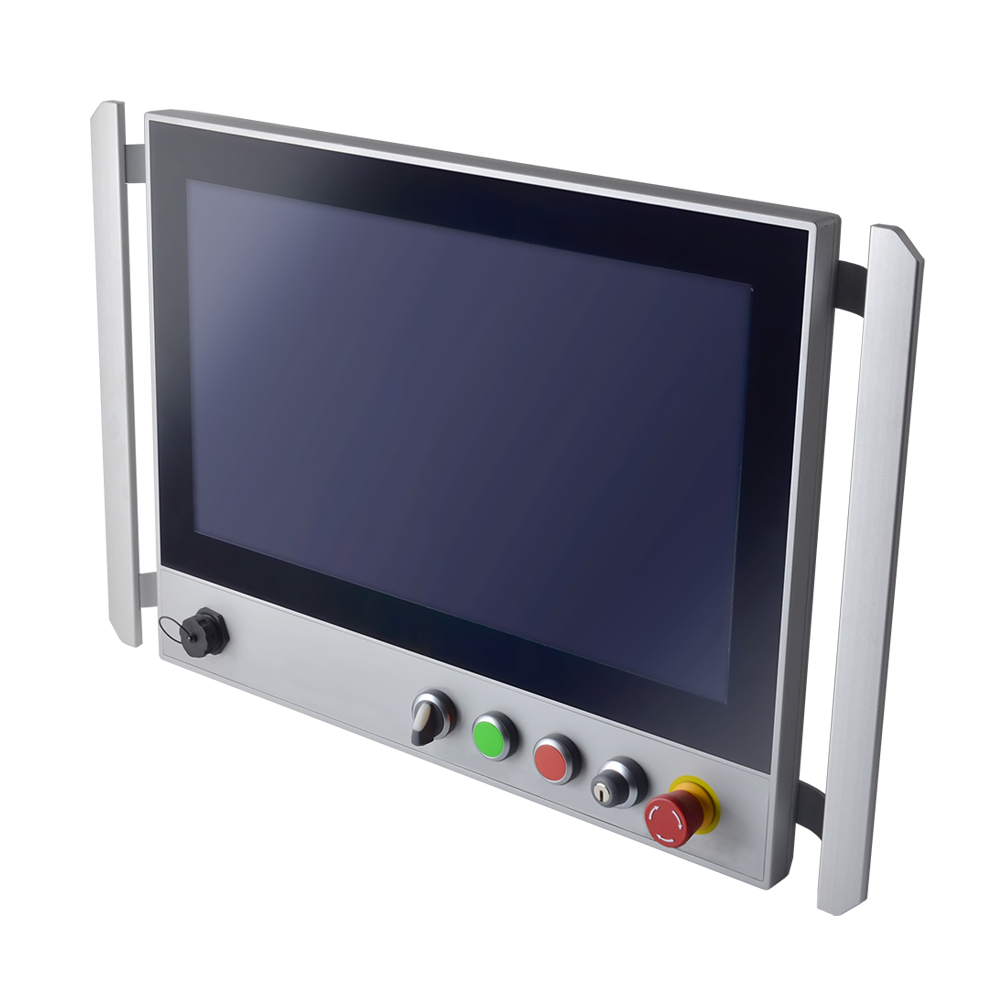

OP118
Larger viewing area for complex HMI screens and operator stations driving multiple machines from one panel. Available as OP118-WX (WXGA, 1366×768) or OP118-HD (Full HD, 1920×1080).
250 / 350 cd/m²
≥87% transmittance
21.5" FULL HD · CONTROL ROOM
OP121-HD
The widest, brightest panel for control rooms and central operator stations. Full HD across 21.5 inches with up to 9 hard-wired configurable buttons.
250 cd/m² · 1000:1
≥87% transmittance
Industrial Grade
Built for the Factory Floor
The OP Series is sealed for the factory. Built to take a beating.
Full IP65
Front and rear sealed against dust and water. Suitable for washdown environments.

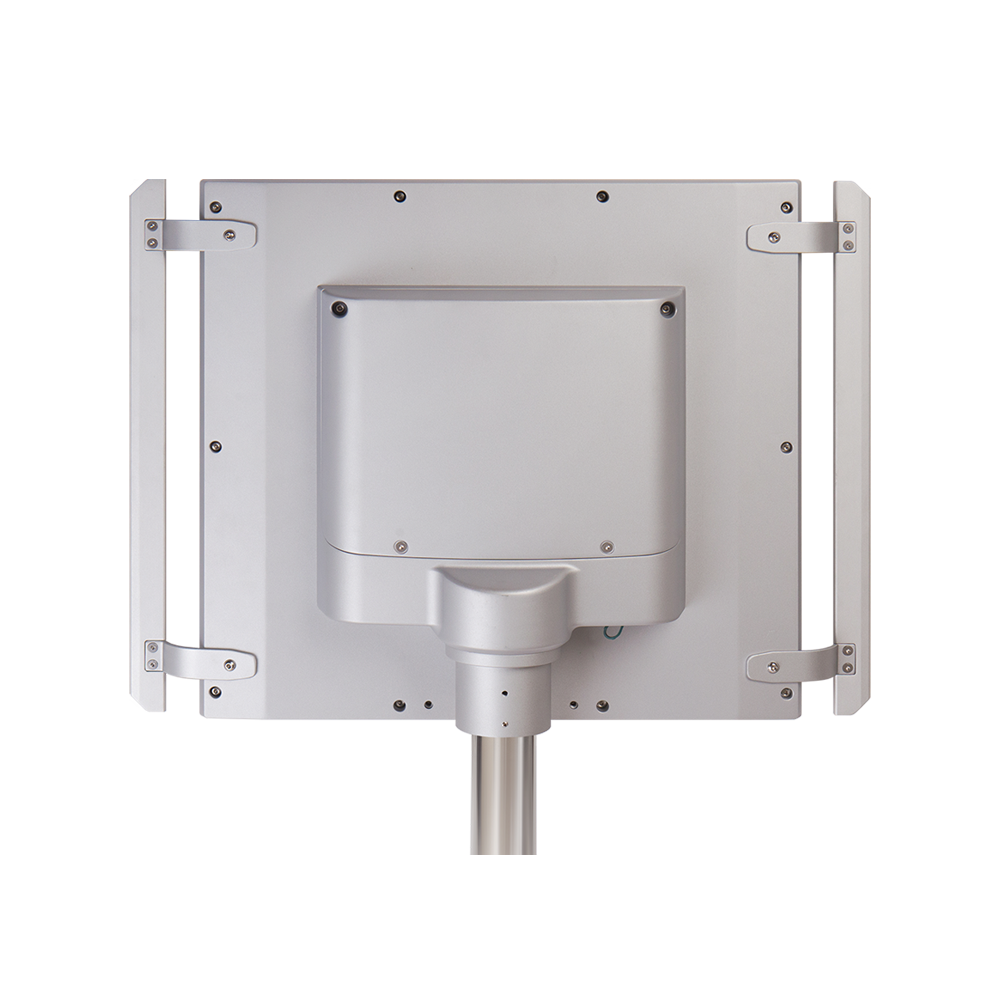

Swing ARM Mount
Top or bottom rail. Compatible with NODKA 4460 and Rittal CP 40 systems.
DC 12–24V Input
Cabinet power with overcurrent, overvoltage, and reverse polarity protection.
0°C to 50°C
IEC 60068-2-64 vibration and IEC 60068-2-27 shock tested. Class B EMC.
Modular Buttons
Hard-wired E-stop, key switch, selectors. Front-accessible. Customer configurable.
Engineering Support
UK-based support. Talk to the engineer who configured your panel.

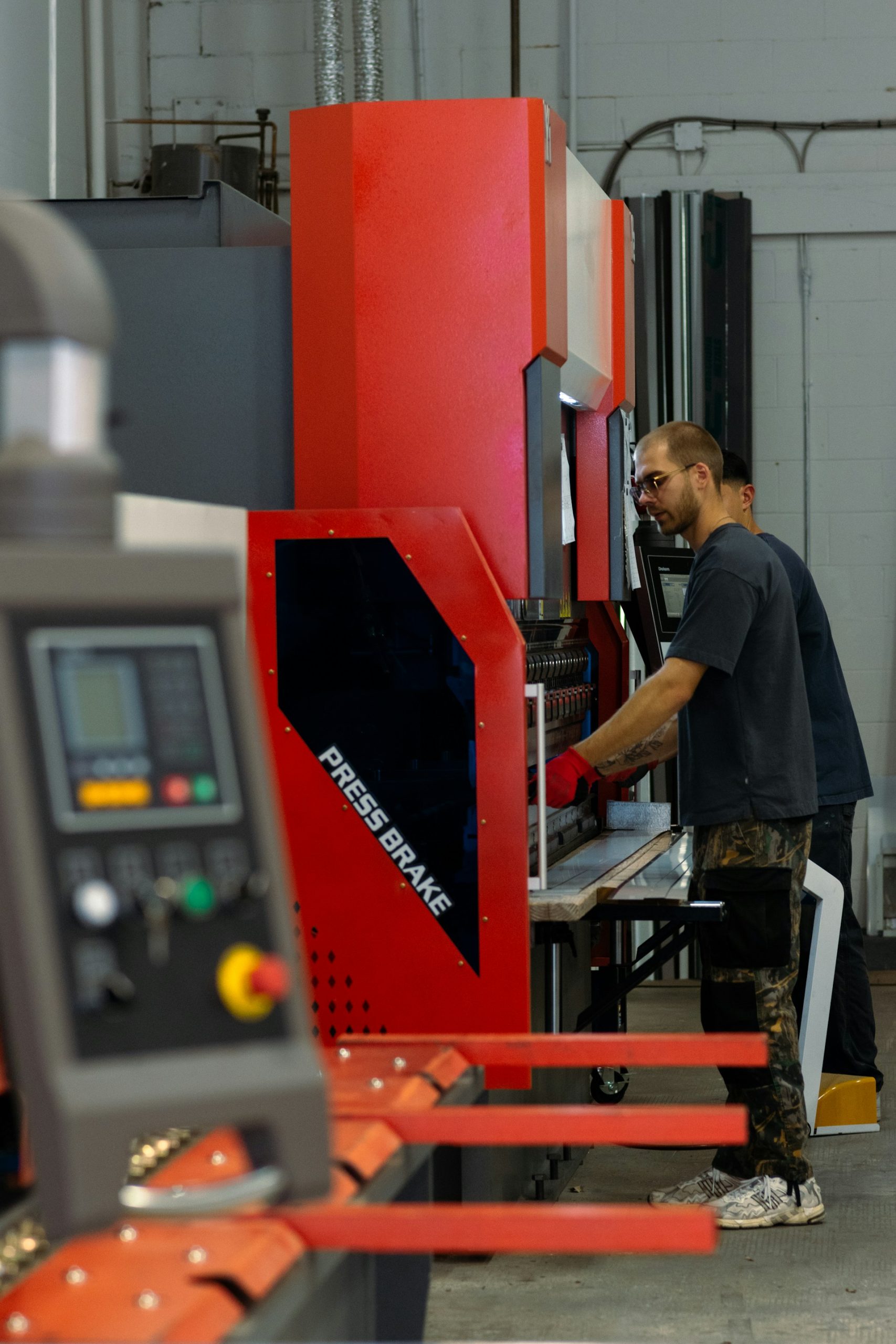

Machine Operator Stations
The OP Series sits at the point of operation, where operators interact with the machine. Full IP65 sealing means fluids, swarf, and cleaning agents do not cause problems. The swing arm puts the screen exactly where it needs to be, and modular buttons handle E-stop and machine state changes without going through the touchscreen.
Capacitive Multi-Touch
Responsive touch through gloves and protective films. 87% transmittance for clear visuals.
Hard-Wired Safety Buttons
Emergency stop and key switch wired direct to safety circuits, not through touchscreen software.
Repositionable Mount
Swing arm adjusts for shift changes, different operator heights, and reach to the work area.
Best suited: CNC operator stations, press machine HMIs, packaging machine controls, custom automation cells.

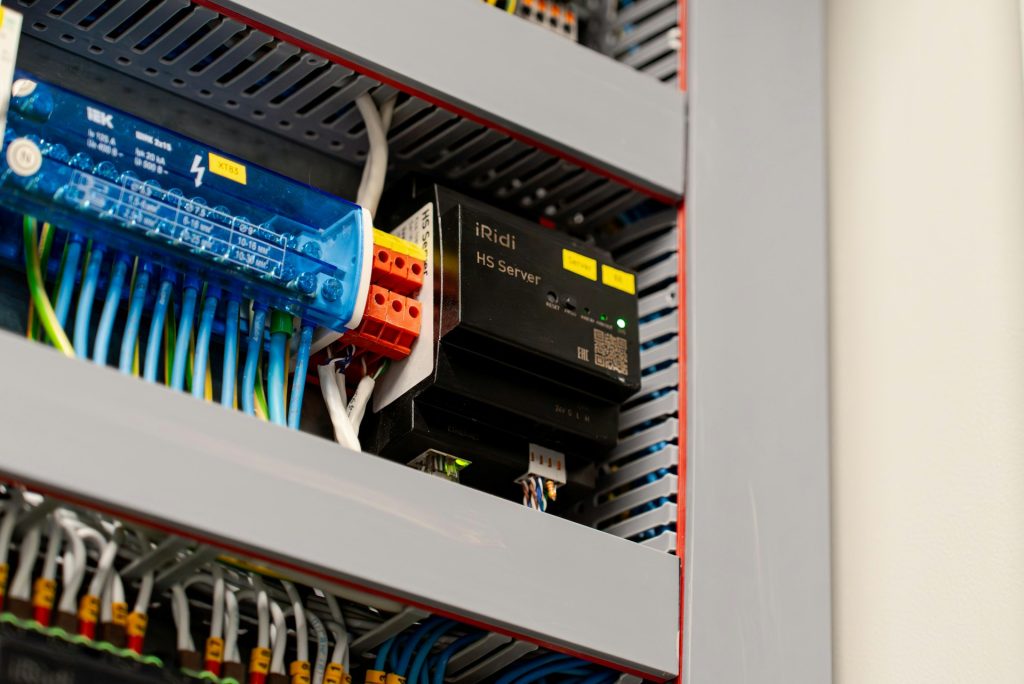

Control Cabinet Interfaces
Mount the OP Series directly to a cabinet door or onto a supporting arm. HDMI runs straight from the AP Series PC inside the cabinet. A USB cable handles touch input. DC power feeds from the cabinet rail. No mains socket required at the panel.
Direct Cabinet Pairing
HDMI plus VGA signal input pairs directly with AP Series automation PCs in the same cabinet.
Cabinet Power Native
DC 12–24V input runs straight from the 24V rail. No transformer or extra PSU needed.
No Special Cabling
Standard HDMI, VGA and USB. Off-the-shelf cables, no proprietary connectors or adapters.
Best suited: Production cells, packaging lines, machine cabinets, retrofitted control systems.

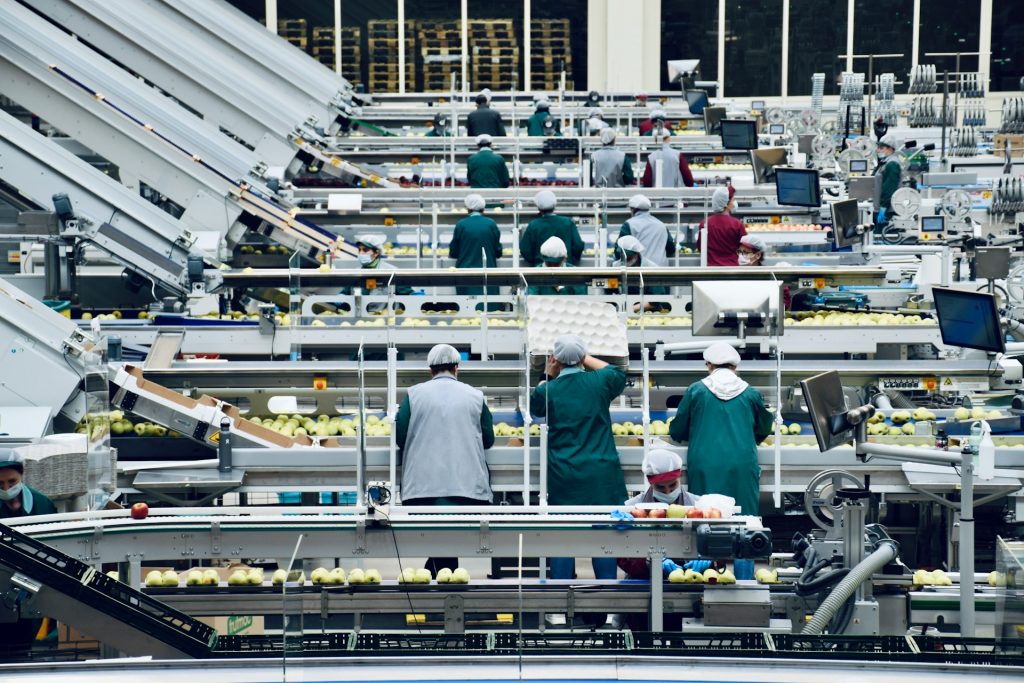

Assembly Line HMI
Real-time process data, quality check results, recipe selection. Operators confirm steps, flag rejects, and call for assistance without leaving position. Multi-touch handles complex HMI screens. Hard-wired buttons handle the actions that need to happen fast.
Up to 9 Buttons
OP121 supports up to 9 Ø22 hard-wired buttons. Configure for confirm, reject, assist, line stop.
Wide Viewing Angles
Up to 89° viewing angle on top models. Operators see the screen clearly from any working position.
High Brightness
Up to 400 cd/m² on the smaller panels. Readable under direct overhead lighting.
Best suited: Assembly stations, quality inspection terminals, recipe selection, production reporting.

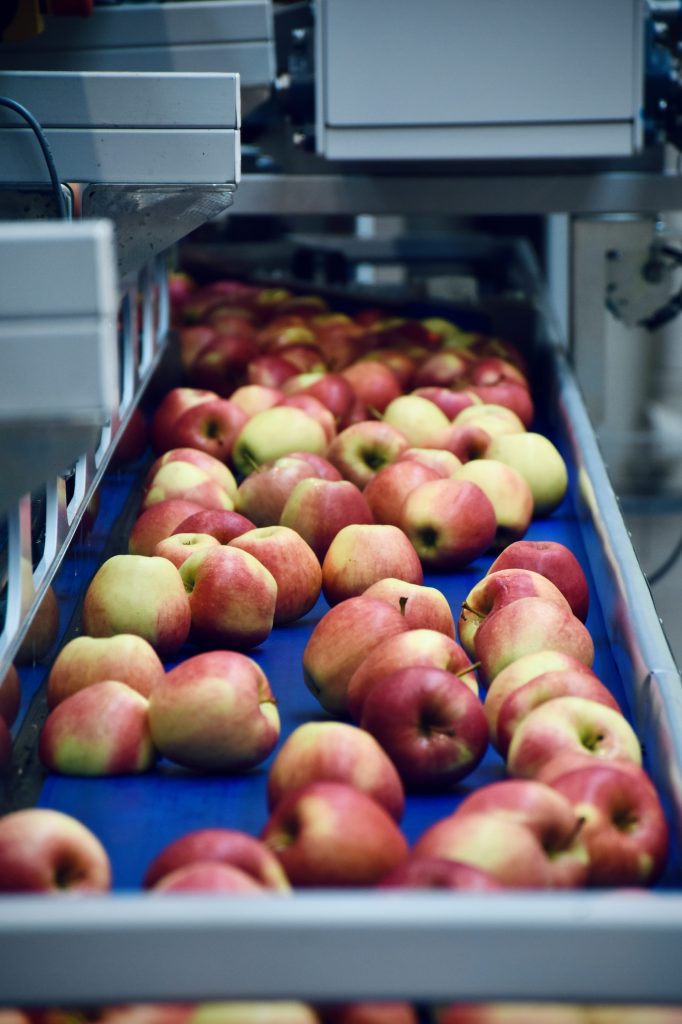

Washdown Environments
Food, beverage, and pharmaceutical production. Full IP65 front and rear means the panel handles cleaning agents, high-pressure rinse, and humidity without complaint. No exposed connectors at the front. The sealed button area keeps corrosive cleaners out of the switch contacts.
Front and Rear IP65
Full enclosure rating, not just front-face sealing. Survives full washdown without bagging.
Aluminium Construction
Rugged aluminium enclosure resists chemical attack and impact damage on busy production lines.
Sealed Button Area
Modular hard-wired buttons sit behind a sealed front panel. No ingress paths around the switches.
Best suited: Food processing lines, dairy, beverage filling, pharmaceutical mixing, clean-in-place areas.

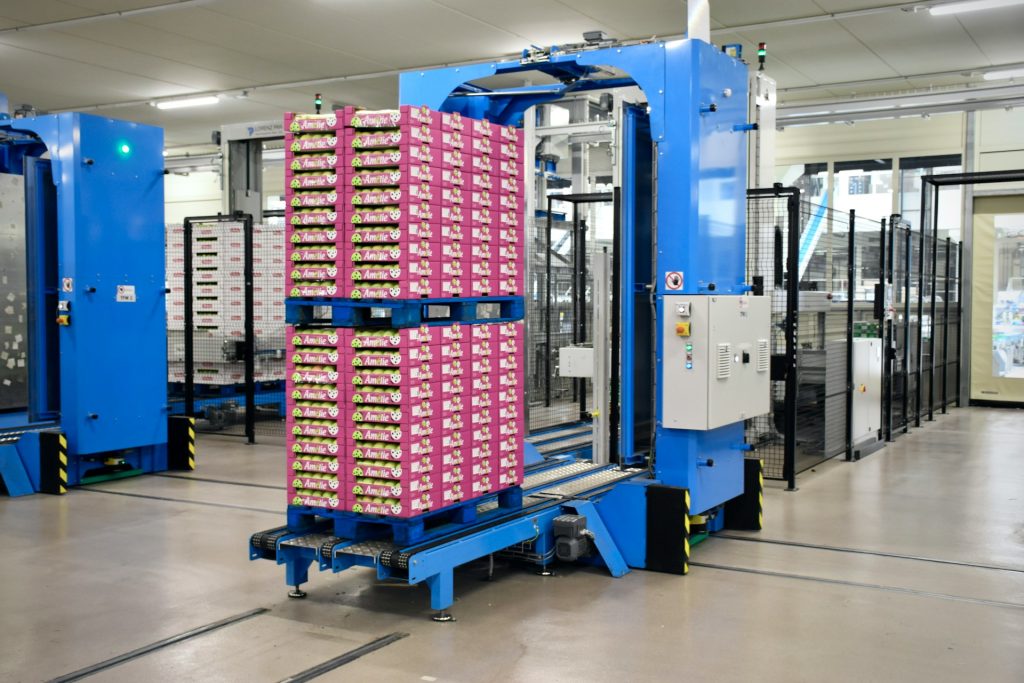

Mobile Operator Consoles
The swing arm repositions for different operators or working positions throughout the shift. Cable routing through the arm keeps the workspace clear. The arm-mount design lets one panel serve multiple zones around a machine, instead of fixing the screen to one spot the operator has to walk to.
NODKA 4460 Compatible
Drops onto NODKA 4460 square tube swing arms. Top or bottom mount.
Rittal CP 40 Compatible
Also fits Rittal CP 40 systems. Standard industrial mount, not a custom bracket.
Routed Cabling
HDMI, USB and DC power route through the arm. No exposed cables at operator height.
Best suited: Multi-zone machines, shift-share workstations, presses, lathes, custom production cells.
Deployed Everywhere
More Applications
The OP Series goes wherever an operator needs to interact with a machine. Wash bays, packaging lines, control cabinets, assembly cells. One arm-mount platform.
Process Control
Recipe selection, parameter adjustment, batch start and stop on chemical, pharma, and food lines.
Packaging Lines
Operator interface for fillers, cappers, labellers and case packers. Quick changeover between SKUs.
CNC and Press HMI
G-code job loading, tool offset entry, hold and resume controls. Hard-wired E-stop next to the screen.
Quality Inspection
Display vision system results, accept and reject buttons, defect logging at the inspection station.
Test & Calibration
Bench operator panels for end-of-line test rigs, calibration jigs, burn-in racks and validation stands.
Maintenance Stations
Diagnostic panels at machine side for engineers and maintenance teams. SCADA dashboards on the floor.
Technical Data
Specifications
Full base specifications across the launch range. Compare every SKU at a glance.
15.0" XGA
15.6" WXGA
15.6" Full HD
18.5" WXGA
18.5" Full HD
21.5" Full HD
Screen size
15.0″
15.6″
15.6″
18.5″
18.5″
21.5″
Resolution
1024 × 768
1366 × 768
1920 × 1080
1366 × 768
1920 × 1080
1920 × 1080
Brightness
400 cd/m²
400 cd/m²
350 cd/m²
250 cd/m²
350 cd/m²
250 cd/m²
Contrast ratio
1000:1
800:1
800:1
1000:1
1200:1
1000:1
Viewing angle
89° all
85° L/R · 50°/80° T/B
89° all
89° all
85° all
89° all
Panel MTBF
50,000 hrs
50,000 hrs
50,000 hrs
30,000 hrs
30,000 hrs
50,000 hrs
Touch
Capacitive multi-touch
Capacitive multi-touch
Capacitive multi-touch
Capacitive multi-touch
Capacitive multi-touch
Capacitive multi-touch
Light transmittance
≥87%
≥87%
≥87%
≥87%
≥87%
≥87%
Signal input
HDMI + VGA
HDMI + VGA
HDMI + VGA
HDMI + VGA
HDMI + VGA
HDMI + VGA
Touch interface
1× USB 2.0 Type B
1× USB 2.0 Type B
1× USB 2.0 Type B
1× USB 2.0 Type B
1× USB 2.0 Type B
1× USB 2.0 Type B
Power input
DC 12–24V ±10%
DC 12–24V ±10%
DC 12–24V ±10%
DC 12–24V ±10%
DC 12–24V ±10%
DC 12–24V ±10%
Min power draw
15W
25W
25W
15W
22W
18W
IP rating
Full IP65
Full IP65
Full IP65
Full IP65
Full IP65
Full IP65
Operating temp
0°C to 50°C
0°C to 50°C
0°C to 50°C
0°C to 50°C
0°C to 50°C
0°C to 50°C
Storage temp
-20°C to 60°C
-20°C to 60°C
-20°C to 60°C
-20°C to 60°C
-20°C to 60°C
-20°C to 60°C
Humidity
5–95% non-condensing
5–95% non-condensing
5–95% non-condensing
5–95% non-condensing
5–95% non-condensing
5–95% non-condensing
Vibration
1.5 Grms IEC 60068-2-64
1.5 Grms IEC 60068-2-64
1.5 Grms IEC 60068-2-64
1.5 Grms IEC 60068-2-64
1.5 Grms IEC 60068-2-64
1.5 Grms IEC 60068-2-64
Shock
10G 11ms IEC 60068-2-27
10G 11ms IEC 60068-2-27
10G 11ms IEC 60068-2-27
10G 11ms IEC 60068-2-27
10G 11ms IEC 60068-2-27
10G 11ms IEC 60068-2-27
Max buttons
6× Ø22
7× Ø22
7× Ø22
7× Ø22
7× Ø22
9× Ø22
ARM mount
NODKA 4460 / Rittal CP 40
NODKA 4460 / Rittal CP 40
NODKA 4460 / Rittal CP 40
NODKA 4460 / Rittal CP 40
NODKA 4460 / Rittal CP 40
NODKA 4460 / Rittal CP 40
Weight
5.1 kg
6.0 kg
6.0 kg
6.7 kg
6.7 kg
7.5 kg
Dimensions
370 × 338 × 135 mm
427 × 323 × 135 mm
427 × 323 × 135 mm
480 × 347 × 135 mm
480 × 347 × 135 mm
553 × 387.5 × 135 mm
OS support
Windows 7, 10/11 IoT, Ubuntu, CentOS
Windows 7, 10/11 IoT, Ubuntu, CentOS
Windows 7, 10/11 IoT, Ubuntu, CentOS
Windows 7, 10/11 IoT, Ubuntu, CentOS
Windows 7, 10/11 IoT, Ubuntu, CentOS
Windows 7, 10/11 IoT, Ubuntu, CentOS
Certifications
CE · RoHS · WEEE
CE · RoHS · WEEE
CE · RoHS · WEEE
CE · RoHS · WEEE
CE · RoHS · WEEE
CE · RoHS · WEEE
Warranty
2yr RTB (3/5yr ext.)
2yr RTB (3/5yr ext.)
2yr RTB (3/5yr ext.)
2yr RTB (3/5yr ext.)
2yr RTB (3/5yr ext.)
2yr RTB (3/5yr ext.)
Pairs With AP Series
A Complete Workstation
The OP Series is built to pair with the AP Series automation PCs. Drop an AP510 into the cabinet, run HDMI and USB to an OP116 on the swing arm, and you have a complete operator workstation. One quote, one supplier, one UK engineering team. Both halves of the system are configured to your spec.
Direct Cable Connection
HDMI for video, USB for touch, DC for power. Off-the-shelf cables. No proprietary connectors.
Configured Together
Tell us your application. We pick the AP unit, OP panel, expansion cards and button layout.
Single UK Source
Both halves built and tested in the UK. One PO, one delivery, one support team.
Nearly Two Decades Building Rugged Computers
19+
Years in Business
50+
Years Bowmonk Heritage
Configured & Shipped from the UK
Our Story
From Vehicle Systems to Industrial Automation
In-CarPC was founded in 2006 to build rugged computers for vehicles. Nearly two decades later, we’ve shipped thousands of systems to customers including Jaguar Land Rover, Volvo Construction Equipment, Manchester Airport, Serco, and the UK Ministry of Defence.
In 2014 we joined Bowmonk Ltd, a family company with over 50 years in vehicle testing equipment. That partnership gave us engineering depth, production capacity, and a global platform to grow.
The OP Series extends what we have built. We take everything we learned making reliable, configured-to-order hardware for harsh environments and apply it to industrial automation. Same engineering team. Same Norwich production facility. Same attention to detail on every unit.
Norwich, UK production facility · Every unit built and tested in-house.
Configured to Order
Every panel is built to your spec. Pick the screen size and resolution, the button layout, the cable lengths. Ships ready to mount.
Screen & Buttons
Four screen sizes from 15" to 21.5". Up to 9 hard-wired buttons in your layout.
Mounting Hardware
NODKA 4460 swing arm or Rittal CP 40 brackets. Top or bottom rail mount.
Warranty
2-year standard. Extended 3 and 5 year options for fleet and OEM deployments.
Direct UK Support
Call us and speak to the engineer who configured your unit. Same team building rugged computers since 2006 for Jaguar Land Rover, Volvo CE, and the UK Ministry of Defence.
Phone & Email
+44 (0)1603 485 153
[email protected]
Part of Bowmonk Ltd
Industrial instrumentation for 50+ years. Norwich, UK.
Single Units Available
Prototype and evaluation quantities welcome.
Interested?
Tell us your application, and we will recommend the right panel, button layout, and AP Series PC to drive it.
